• Rear axle, 3.73 ratio
• GVWR, 5300 lbs. (2404 kg)
• Transfer case, Insta-Trac, electronic shift with dash-mounted controls, 4x4 models only
• Differential, automatic locking rear
• Four wheel drive
• Battery, heavy-duty 590 cold-cranking amps, maintenance-free with rundown protection
• Alternator, 125 amps
• Pickup box, Fleetside, all-welded steel with double wall construction and corrosion protection with 4 cargo tie-downs, tailgate, 2-position
• Recovery hooks, 2 front, frame-mounted
• Suspension Package, Off-Road
• Suspension, front, torsion bar and stabilizer bar
• Suspension, rear semi-floating axle with 2-stage multi-leaf springs
• Steering, power, rack-and-pinion
• Brakes, 4-wheel antilock, front disc/rear drum

• Wheels, 4 - 17" x 7" (43.2 cm x 17.8 cm) chrome clad
• Tires, P265/70R17 on-/off-road, blackwall
• Tire, spare P235/75R16 all-season, blackwall
• Bumpers, front and rear chrome with a Dark Smoke Gray pad on the rear step-style bumper
• Fascia, front Dark Smoke Gray
• Air dam, Ebony
• Moldings, color-keyed bodyside
• Wheel flares, front and rear, large, body-color
• Grille, color-keyed surround with chrome bar
• Fog lamps, front, halogen
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield, driver-and front passenger-side glass)
• Window, rear-sliding
• Mirrors, outside power-adjustable, manual-folding
• Wipers, front intermittent with washers
• Bedliner
• Tailgate, 2-position

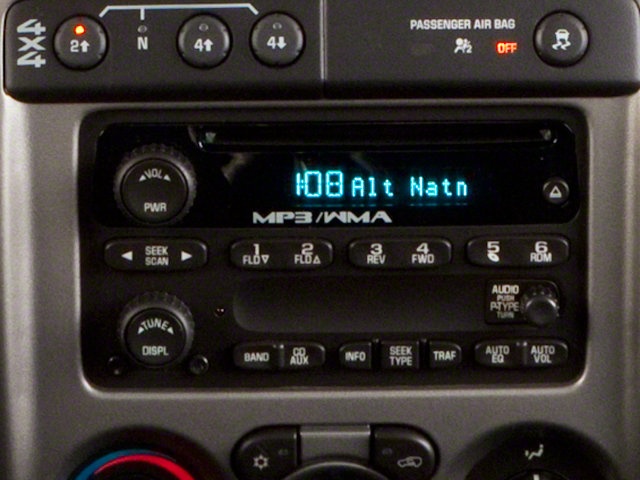

• Audio system, AM/FM stereo with CD/MP3 player, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), automatic volume and TheftLock
• XM Radio is standard on more than 50 2010 GM models, including three trial months of service. XM turns your world on with commercial-free music channels for virtually every music genre, all in amazing digital quality sound. Turn on your favorite sports, the biggest names in News, Talk and Comedy, family programming, exclusive concerts and original music series, wherever you go from coast to coast. Everything worth listening to is now on XM XM service available only in the 48 contiguous United States and the District of Columbia. XM Radio subscription required and sold separately after trial period. Fees, taxes, and a one-time re-activation fee, may apply. Subscriptions governed by XM Customer Agreement available at xmradio.com. All fees and programming subject to change. Family programming Packages are available. Service not available with a ship-to of Alaska, Hawaii, Puerto Rico and the Virgin Islands
• Audio system feature, uplevel speaker system

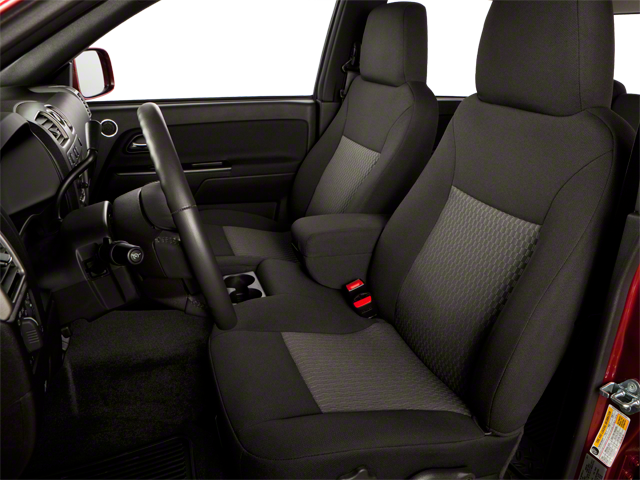

• Seats, front 60/40 split-bench includes armrest with integral storage and dual cup holders

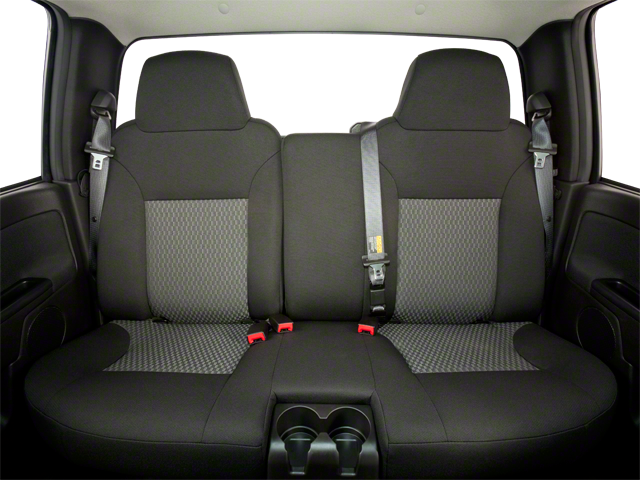

• Seats, second row 60/40 split-bench, flat-folding
• Floor covering, Ebony carpeting
• Floor mats, rubberized-vinyl front and rear

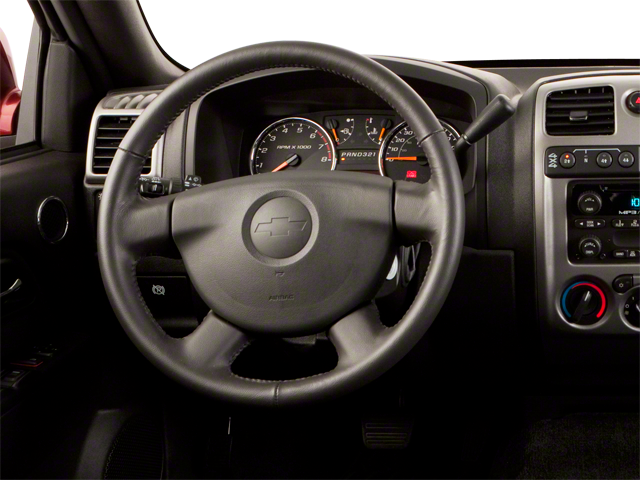

• Steering wheel, leather-wrapped
• Steering column, Tilt-Wheel
• Theft-deterrent system, vehicle, PASSlock
• Warning tones headlamp on, key-in-ignition, driver safety belt unfasten, turn signal on and critical Driver Information Center active
• Cruise control
• Air conditioning, single-zone manual
• Power outlets, 2 auxiliary with covers, 12-volt
• Accents, interior Titanium Nova Silver-colored air outlets, center control stack, chrome door handle bezels and uplevel instrument cluster bezel
• Door trim integral armrests and driver- and front passenger-side map pockets with cloth inserts
• Mirror, inside rearview auto-dimming with compass and outside temperature display
• Visors, driver and front passenger, padded with cloth includes front passenger vanity mirror
• Assist handle, front passenger and rear outboard
• Coat hooks, driver- and passenger-side rear

• StabiliTrak (Includes traction control)
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicle's Owner's Manual and child safety seat instructions for more safety information)
• Air bags, head curtain side-impact, driver and right-front passenger, first and second row outboard passengers (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information)
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Air Bag Deployment Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance, Remote Door Unlock (requires power locks), Roadside Assistance, Remote Horn and Lights, Hands Free Calling, OnStar Vehicle Diagnostics, and Low Mileage Discount (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Vehicle Diagnostics capabilities vary by model. Remote door unlock success varies with conditions. Ability to locate stolen vehicles varies with conditions. Subscription Service Agreement required. Call 1-888-4ONSTAR (1-888-466-7827) or visit onstar.com for OnStar's Terms and Conditions, Privacy Policy and details and system limitations. Service not available with a ship-to of Puerto Rico or the Virgin Islands)
• Safety belts, 3-point, driver and right-front passenger, adjustable (center front position lap belt with bench seat only)
• Safety belts, 3-point, rear, all seating positions
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Tire Pressure Monitor
• Door locks, child security rear

ENGINE, 5.3L V8 SFI

• (300 hp [223.7 kW] @ 5200 rpm
• 320 lb-ft of torque [432.0 Nm] @ 3600 rpm)

• 3.73 Rear Axle Ratio
• Automatic Locking Rear Differential
• Front 60/40 Split-Bench Seat
• Front Bucket Seats
• Deluxe Cloth Seat Trim
• Rear-Sliding Window
• AM/FM Stereo w/CD/MP3 Player
• Front License Plate Bracket
• Solar-Ray Deep-Tinted Glass
• 2nd Row Flat-Folding 60/40 Split-Bench Seat
• Compass & Outside Temperature Display
• Manual-Folding Outside Power-Adjustable Mirrors
• Inside Rear-View Auto-Dimming Mirror
• Child Security Rear Door Locks
• Remote Keyless Entry
• 145 Amps Alternator
• Power Door Locks w/Lockout Protection

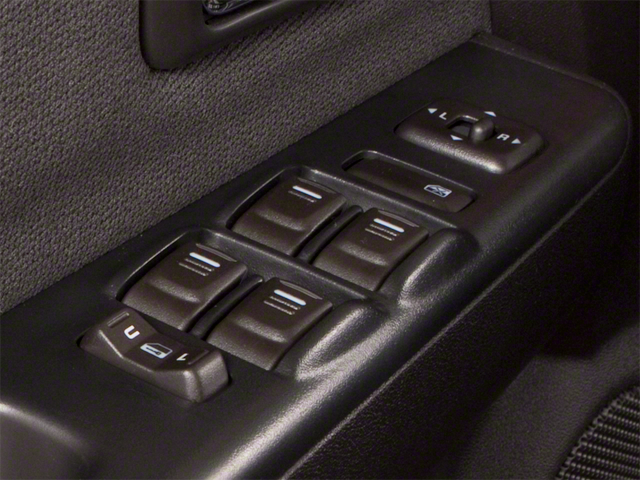

• Power Windows
• Halogen Front Fog Lamps
• XM Radio
• Power Convenience Package
• 6 Speakers
• Emergency communication system: OnStar Safe & Sound
• AM/FM radio: XM

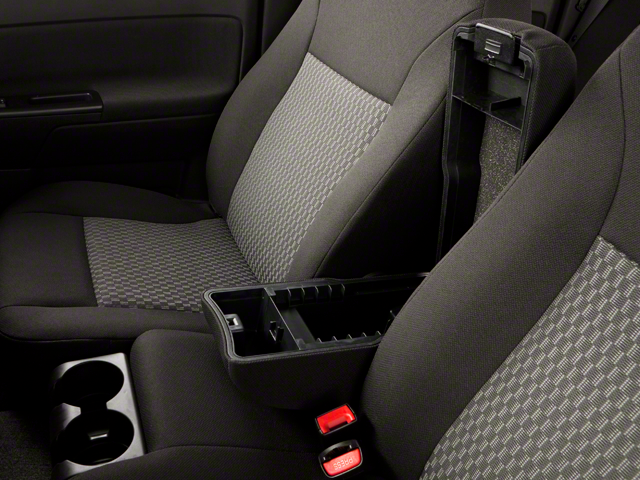

• Front Center Armrest w/Storage
• Compass
• Auto-dimming Rear-View mirror
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Split folding rear seat
• Speed control
• Remote keyless entry
• Rear step bumper
• Radio data system
• Power windows
• Power steering
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Low tire pressure warning
• Leather steering wheel
• Illuminated entry
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front fog lights
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• CD player
• Bodyside moldings
• Alloy wheels
• ABS brakes
• Tachometer
• Electronic Stability Control
• Bedliner
• Air Conditioning

• Mileage
• Fuel Economy Est-Combined (MPG): 16
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 590
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2850
• Gross Axle Wt Rating - Rear (lbs): 2896
• Curb Weight - Front (lbs): 2311
• Curb Weight - Rear (lbs): 1759
• Gross Vehicle Weight Rating Cap (lbs): 5300
• Gross Combined Wt Rating (lbs): 10400
• Gross Combined Wt Rating (lbs): 9800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 825
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2850
• Spring Capacity - Rear (lbs): 2900
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 2850
• Axle Capacity - Rear (lbs): 2900
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.2 x 1.6
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.6 x 2.5
• Tires
• Front Tire Order Code: QJP
• Rear Tire Order Code: QJP
• Spare Tire Order Code: ZNF
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P235/75R16
• Front Tire Capacity (lbs): 1763
• Rear Tire Capacity (lbs): 1763
• Spare Tire Capacity (lbs): 1763
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7
• Rear Wheel Size (in): 17 x 7
• Spare Wheel Size (in): 16
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 18.3
• Steering Ratio (:1), At Lock: 3.2
• Turning Diameter - Curb to Curb (ft): 44.3
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19
• Fuel Tank Location: Inboard LH Frame Rail
• Exterior Dimensions
• Wheelbase (in): 126.0
• Length, Overall w/o rear bumper (in): 207.1
• Width, Max w/o mirrors (in): 68.6
• Height, Overall (in): 67.9
• Overhang, Front (in): 33.9
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 137.3
• Cab to Axle (in): 22.6
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 31.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.2
• Ground Clearance, Rear (in): 10.2
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 61.1
• Cargo Box Width @ Floor (in): 57.2
• Cargo Box Width @ Wheelhousings (in): 42.6
• Cargo Box (Area) Height (in): 18.6
• Tailgate Width (in): 52.4
• Cargo Volume (ft³): 37.0
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 39.3
• Front Leg Room (in): 42.2
• Front Shoulder Room (in): 57.1
• Front Hip Room (in): 53.3
• Second Head Room (in): 38.3
• Second Leg Room (in): 34.8
• Second Shoulder Room (in): 57.1
• Second Hip Room (in): 52.9
• Summary
• Vehicle Name: Chevrolet Colorado
• Body Style: Crew Cab
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: 3
• EPA Greenhouse Gas Score: 4
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.6
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.4
